215. 综合实战：开放世界（十六）

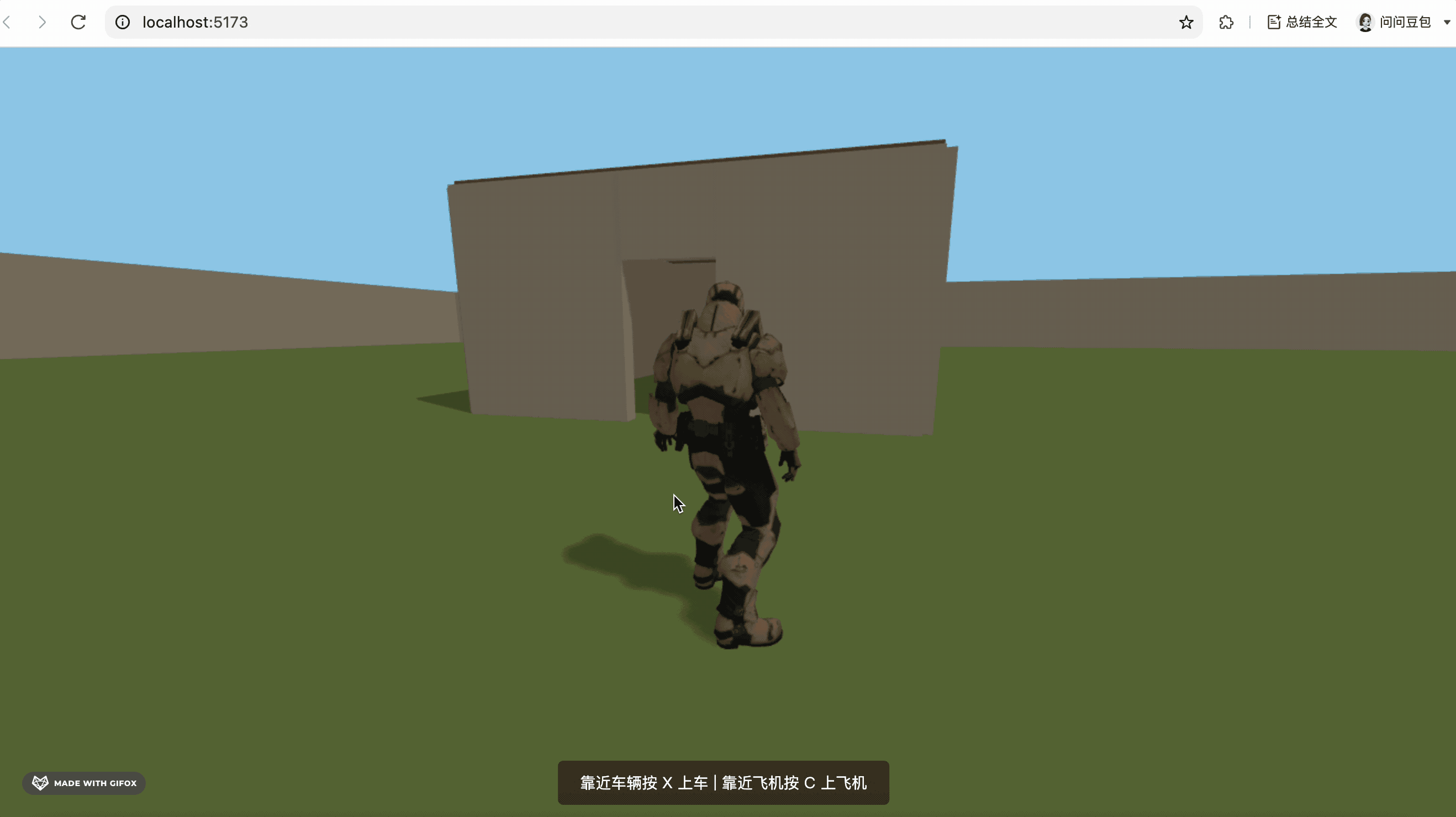

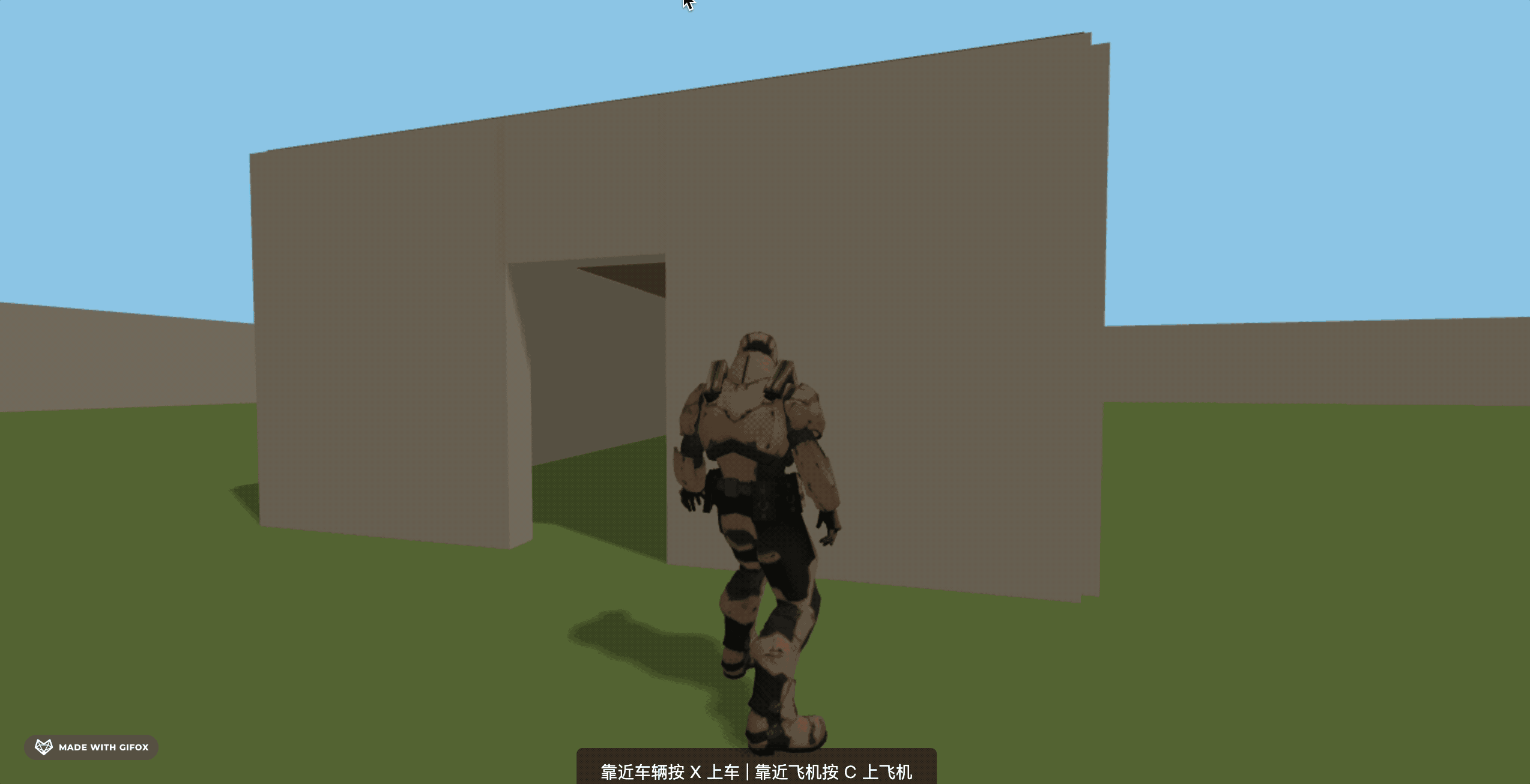

上节在开放世界里画了房子：

但是现在能穿墙，只有 ui 效果。这节加上物理效果。

就是给墙和屋顶加上对应的物理刚体就可以了。

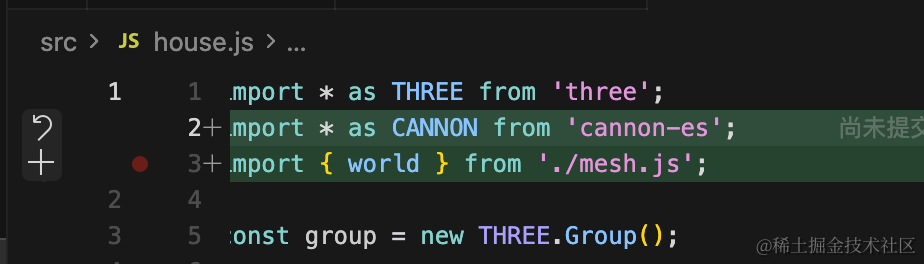

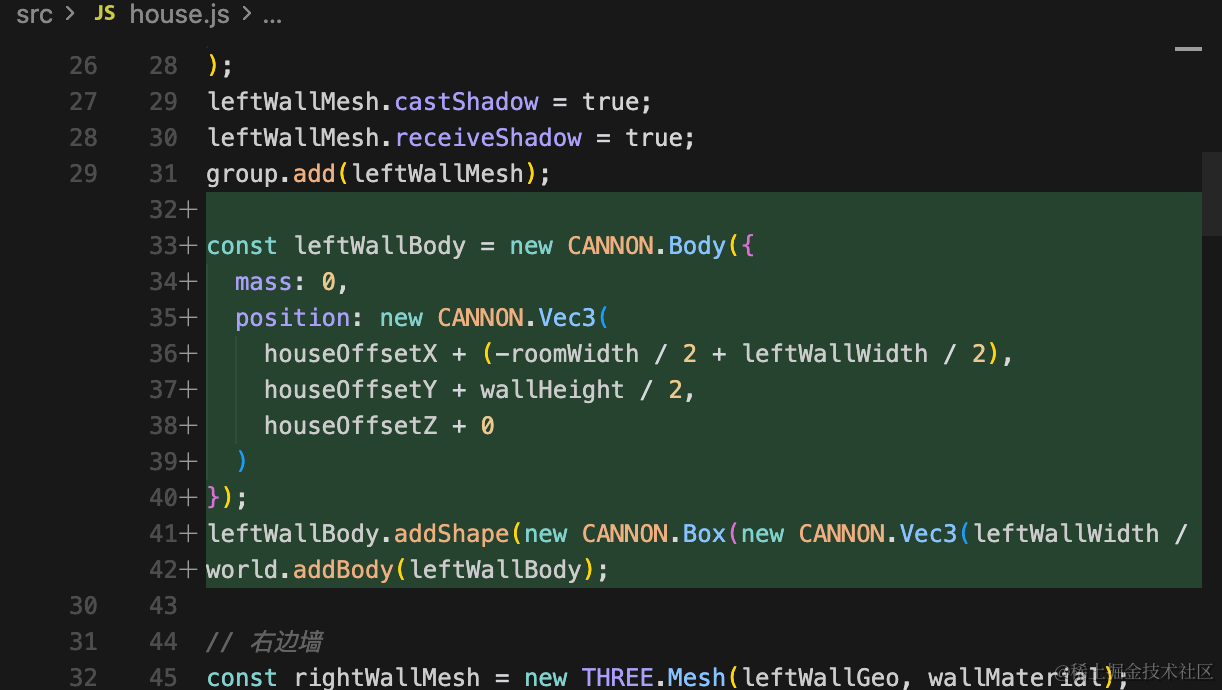

加一下：

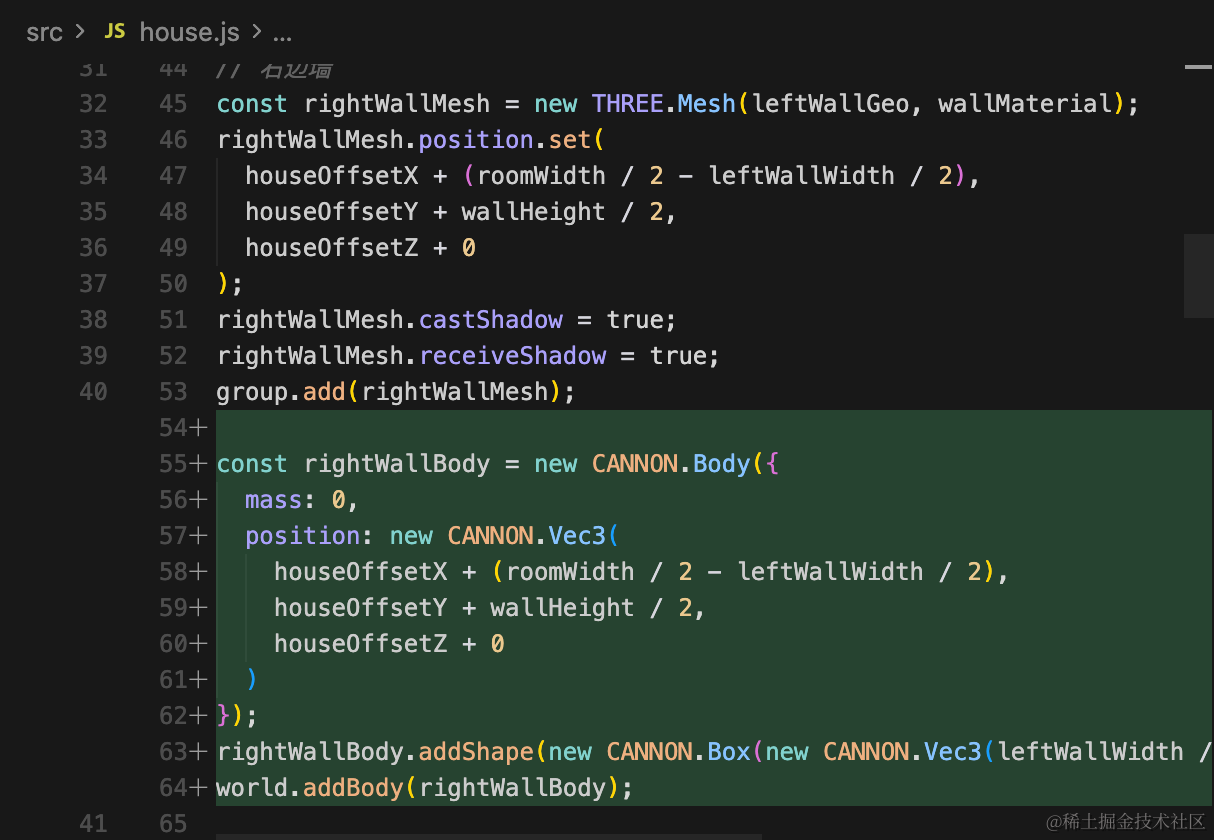

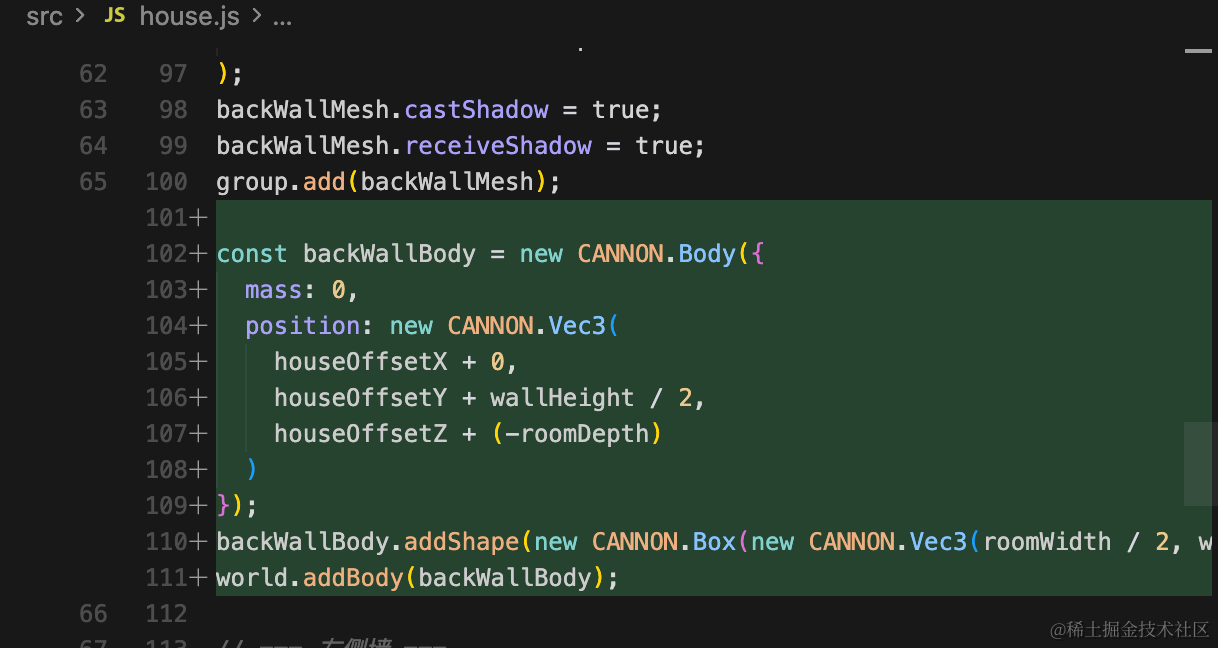

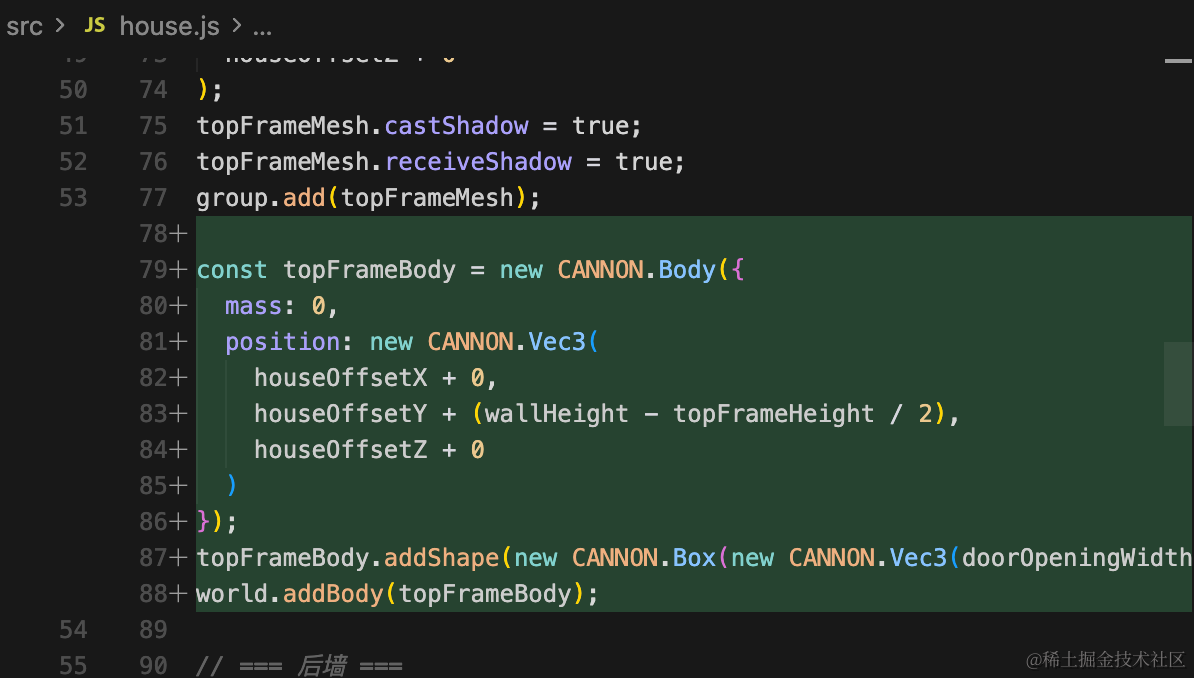

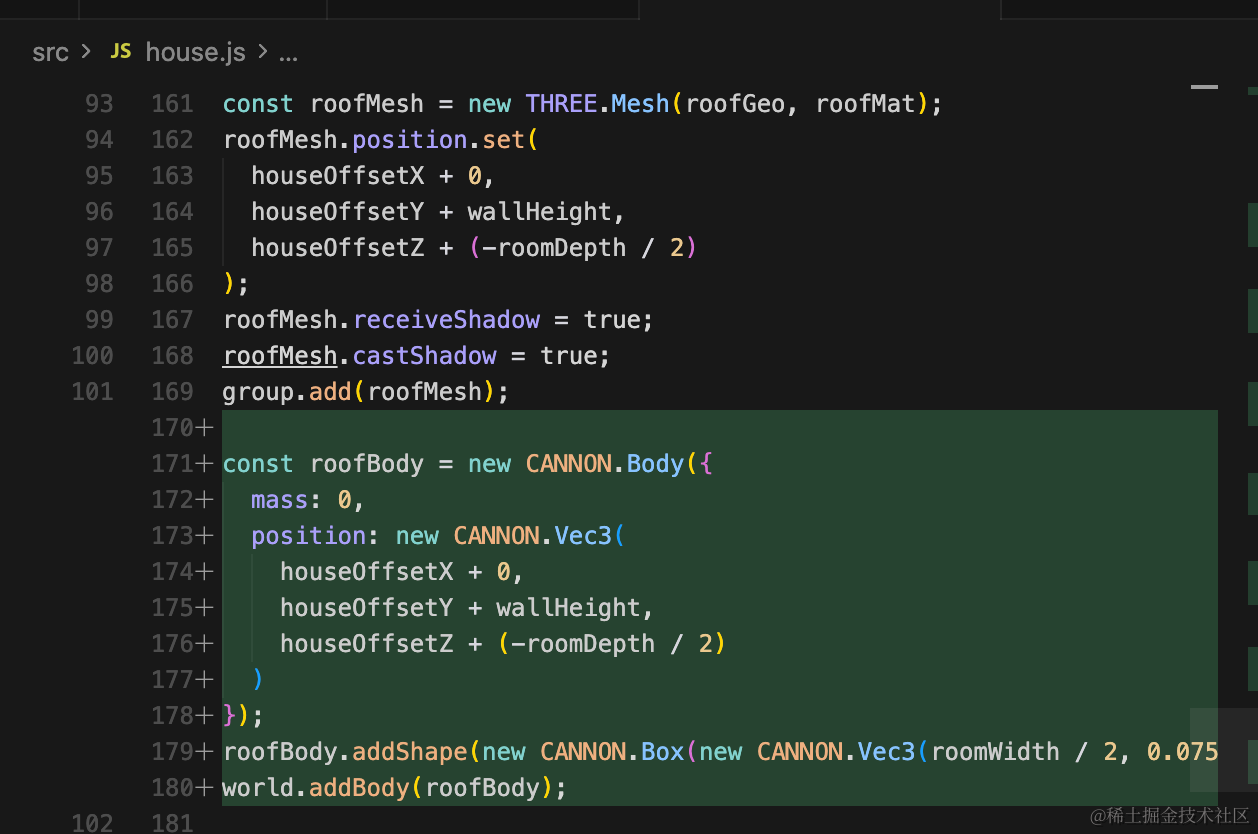

就是用 Box 在物体对应位置创建一样的物理刚体，加到 cannon 物理世界里就好了。

import * as THREE from 'three';
import * as CANNON from 'cannon-es';
import { world } from './mesh.js';

const group = new THREE.Group();

const houseOffsetX = -20;
const houseOffsetY = 0;
const houseOffsetZ = -20;

const roomWidth = 6;
const roomDepth = 8;
const wallHeight = 3;
const wallThickness = 0.25;
const doorOpeningWidth = 1.2;

const wallMaterial = new THREE.MeshPhongMaterial({ color: 0xd4c5a9 });

// === 前墙（有门）===
// 左边墙
const leftWallWidth = (roomWidth - doorOpeningWidth) / 2;
const leftWallGeo = new THREE.BoxGeometry(leftWallWidth, wallHeight, wallThickness);
const leftWallMesh = new THREE.Mesh(leftWallGeo, wallMaterial);
leftWallMesh.position.set(
  houseOffsetX + (-roomWidth / 2 + leftWallWidth / 2),
  houseOffsetY + wallHeight / 2,
  houseOffsetZ + 0
);
leftWallMesh.castShadow = true;
leftWallMesh.receiveShadow = true;
group.add(leftWallMesh);

const leftWallBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + (-roomWidth / 2 + leftWallWidth / 2),
    houseOffsetY + wallHeight / 2,
    houseOffsetZ + 0
  )
});
leftWallBody.addShape(new CANNON.Box(new CANNON.Vec3(leftWallWidth / 2, wallHeight / 2, wallThickness / 2)));
world.addBody(leftWallBody);

// 右边墙
const rightWallMesh = new THREE.Mesh(leftWallGeo, wallMaterial);
rightWallMesh.position.set(
  houseOffsetX + (roomWidth / 2 - leftWallWidth / 2),
  houseOffsetY + wallHeight / 2,
  houseOffsetZ + 0
);
rightWallMesh.castShadow = true;
rightWallMesh.receiveShadow = true;
group.add(rightWallMesh);

const rightWallBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + (roomWidth / 2 - leftWallWidth / 2),
    houseOffsetY + wallHeight / 2,
    houseOffsetZ + 0
  )
});
rightWallBody.addShape(new CANNON.Box(new CANNON.Vec3(leftWallWidth / 2, wallHeight / 2, wallThickness / 2)));
world.addBody(rightWallBody);

// 门框上方
const topFrameHeight = wallHeight - 2;
const topFrameGeo = new THREE.BoxGeometry(doorOpeningWidth, topFrameHeight, wallThickness);
const topFrameMesh = new THREE.Mesh(topFrameGeo, wallMaterial);
topFrameMesh.position.set(
  houseOffsetX + 0,
  houseOffsetY + (wallHeight - topFrameHeight / 2),
  houseOffsetZ + 0
);
topFrameMesh.castShadow = true;
topFrameMesh.receiveShadow = true;
group.add(topFrameMesh);

const topFrameBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + 0,
    houseOffsetY + (wallHeight - topFrameHeight / 2),
    houseOffsetZ + 0
  )
});
topFrameBody.addShape(new CANNON.Box(new CANNON.Vec3(doorOpeningWidth / 2, topFrameHeight / 2, wallThickness / 2)));
world.addBody(topFrameBody);

// === 后墙 ===
const backWallGeo = new THREE.BoxGeometry(roomWidth, wallHeight, wallThickness);
const backWallMesh = new THREE.Mesh(backWallGeo, wallMaterial);
backWallMesh.position.set(
  houseOffsetX + 0,
  houseOffsetY + wallHeight / 2,
  houseOffsetZ + (-roomDepth)
);
backWallMesh.castShadow = true;
backWallMesh.receiveShadow = true;
group.add(backWallMesh);

const backWallBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + 0,
    houseOffsetY + wallHeight / 2,
    houseOffsetZ + (-roomDepth)
  )
});
backWallBody.addShape(new CANNON.Box(new CANNON.Vec3(roomWidth / 2, wallHeight / 2, wallThickness / 2)));
world.addBody(backWallBody);

// === 左侧墙 ===
const sideWallGeo = new THREE.BoxGeometry(wallThickness, wallHeight, roomDepth);
const leftSideWallMesh = new THREE.Mesh(sideWallGeo, wallMaterial);
leftSideWallMesh.position.set(
  houseOffsetX + (-roomWidth / 2),
  houseOffsetY + wallHeight / 2,
  houseOffsetZ + (-roomDepth / 2)
);
leftSideWallMesh.castShadow = true;
leftSideWallMesh.receiveShadow = true;
group.add(leftSideWallMesh);

const leftSideWallBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + (-roomWidth / 2),
    houseOffsetY + wallHeight / 2,
    houseOffsetZ + (-roomDepth / 2)
  )
});
leftSideWallBody.addShape(new CANNON.Box(new CANNON.Vec3(wallThickness / 2, wallHeight / 2, roomDepth / 2)));
world.addBody(leftSideWallBody);

// === 右侧墙 ===
const rightSideWallMesh = new THREE.Mesh(sideWallGeo, wallMaterial);
rightSideWallMesh.position.set(
  houseOffsetX + (roomWidth / 2),
  houseOffsetY + wallHeight / 2,
  houseOffsetZ + (-roomDepth / 2)
);
rightSideWallMesh.castShadow = true;
rightSideWallMesh.receiveShadow = true;
group.add(rightSideWallMesh);

const rightSideWallBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + (roomWidth / 2),
    houseOffsetY + wallHeight / 2,
    houseOffsetZ + (-roomDepth / 2)
  )
});
rightSideWallBody.addShape(new CANNON.Box(new CANNON.Vec3(wallThickness / 2, wallHeight / 2, roomDepth / 2)));
world.addBody(rightSideWallBody);

// === 屋顶 ===
const roofGeo = new THREE.BoxGeometry(roomWidth, 0.15, roomDepth);
const roofMat = new THREE.MeshPhongMaterial({ color: 0x8b7355 });
const roofMesh = new THREE.Mesh(roofGeo, roofMat);
roofMesh.position.set(
  houseOffsetX + 0,
  houseOffsetY + wallHeight,
  houseOffsetZ + (-roomDepth / 2)
);
roofMesh.receiveShadow = true;
roofMesh.castShadow = true;
group.add(roofMesh);

const roofBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + 0,
    houseOffsetY + wallHeight,
    houseOffsetZ + (-roomDepth / 2)
  )
});
roofBody.addShape(new CANNON.Box(new CANNON.Vec3(roomWidth / 2, 0.075, roomDepth / 2)));
world.addBody(roofBody);

export default group;

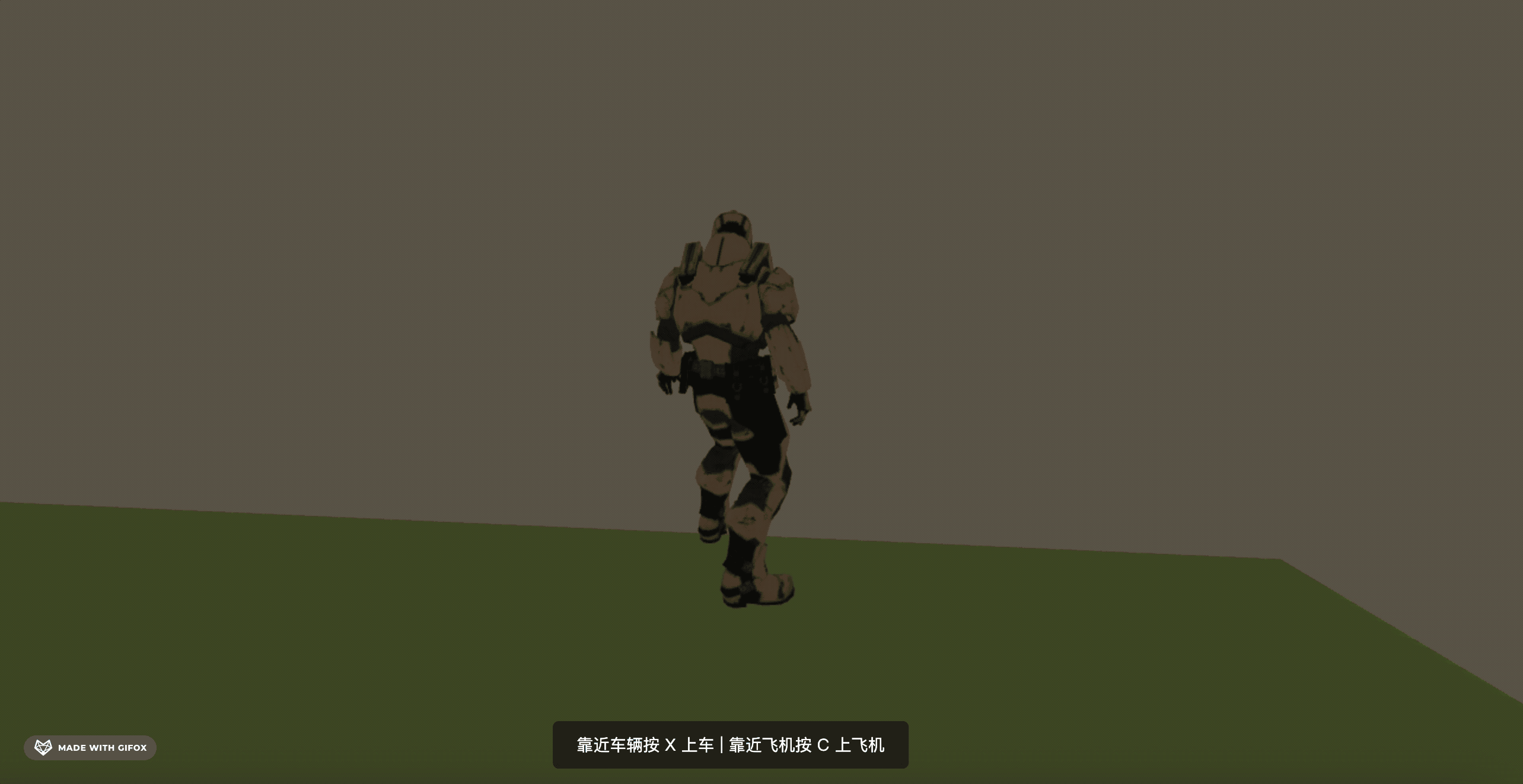

试一下：

这样，就不会穿墙了，可以从门的位置进去。

现在屋里太暗了，我们加个窗户：

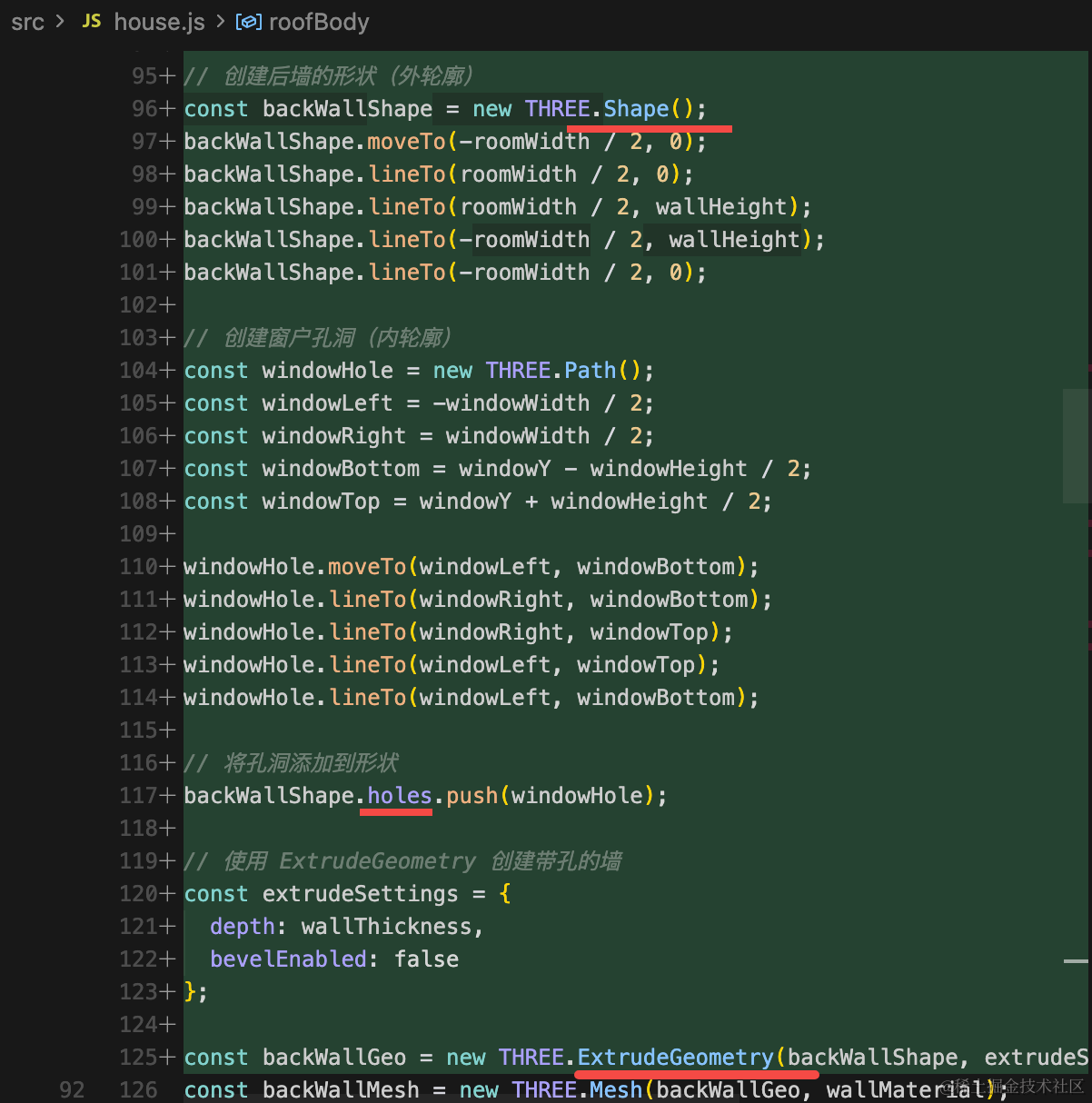

改一下后墙，换成 ExtrudeGemotry + Shape + holes 来画窗户。

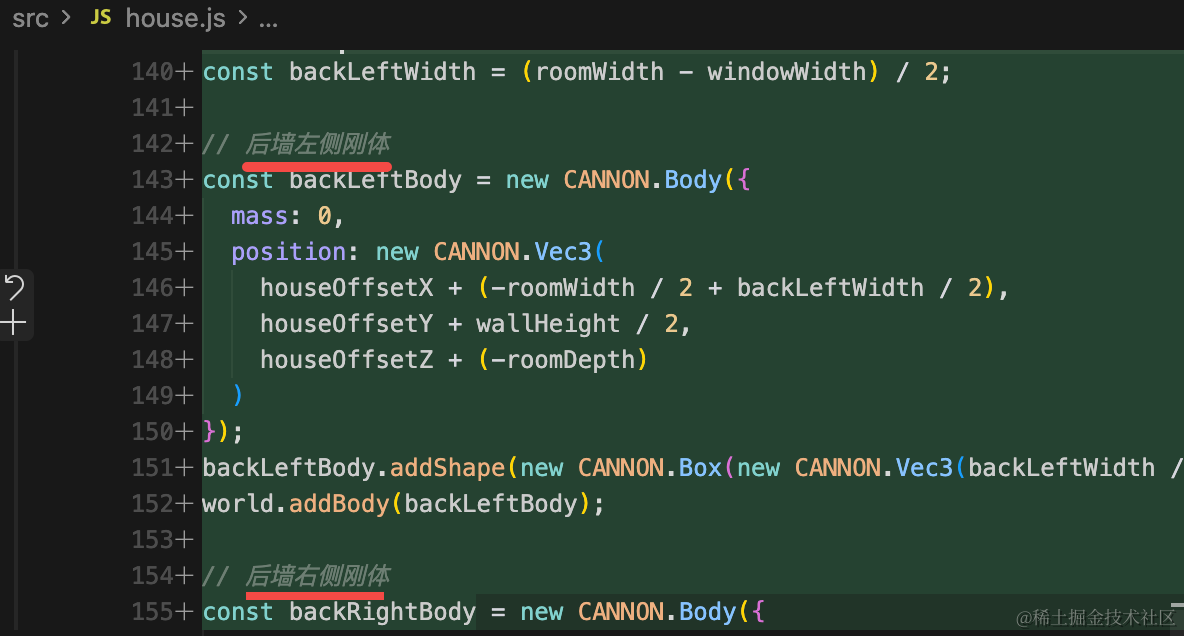

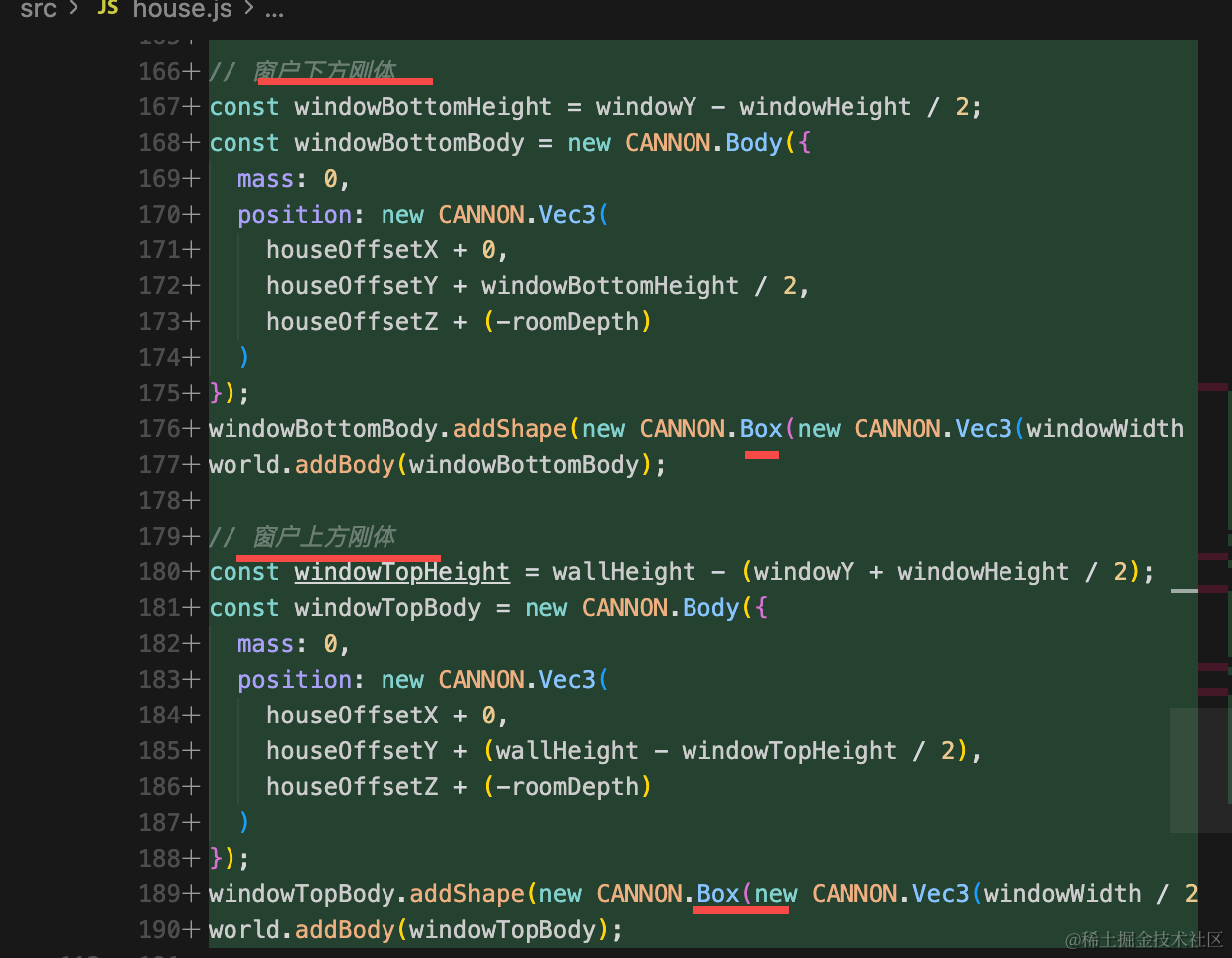

要注意的是，cannon 并不支持这种带孔的形状。所以虽然墙用了 带孔的形状，但是对应的物理刚体还是得一个个 Box 来画：

import * as THREE from 'three';
import * as CANNON from 'cannon-es';
import { world } from './mesh.js';

const group = new THREE.Group();

const houseOffsetX = -20;
const houseOffsetY = 0;
const houseOffsetZ = -20;

const roomWidth = 6;
const roomDepth = 8;
const wallHeight = 3;
const wallThickness = 0.25;
const doorOpeningWidth = 1.2;

const wallMaterial = new THREE.MeshPhongMaterial({ color: 0xd4c5a9 });

// === 前墙（有门）===
// 左边墙
const leftWallWidth = (roomWidth - doorOpeningWidth) / 2;
const leftWallGeo = new THREE.BoxGeometry(leftWallWidth, wallHeight, wallThickness);
const leftWallMesh = new THREE.Mesh(leftWallGeo, wallMaterial);
leftWallMesh.position.set(
  houseOffsetX + (-roomWidth / 2 + leftWallWidth / 2),
  houseOffsetY + wallHeight / 2,
  houseOffsetZ + 0
);
leftWallMesh.castShadow = true;
leftWallMesh.receiveShadow = true;
group.add(leftWallMesh);

const leftWallBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + (-roomWidth / 2 + leftWallWidth / 2),
    houseOffsetY + wallHeight / 2,
    houseOffsetZ + 0
  )
});
leftWallBody.addShape(new CANNON.Box(new CANNON.Vec3(leftWallWidth / 2, wallHeight / 2, wallThickness / 2)));
world.addBody(leftWallBody);

// 右边墙
const rightWallMesh = new THREE.Mesh(leftWallGeo, wallMaterial);
rightWallMesh.position.set(
  houseOffsetX + (roomWidth / 2 - leftWallWidth / 2),
  houseOffsetY + wallHeight / 2,
  houseOffsetZ + 0
);
rightWallMesh.castShadow = true;
rightWallMesh.receiveShadow = true;
group.add(rightWallMesh);

const rightWallBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + (roomWidth / 2 - leftWallWidth / 2),
    houseOffsetY + wallHeight / 2,
    houseOffsetZ + 0
  )
});
rightWallBody.addShape(new CANNON.Box(new CANNON.Vec3(leftWallWidth / 2, wallHeight / 2, wallThickness / 2)));
world.addBody(rightWallBody);

// 门框上方
const topFrameHeight = wallHeight - 2;
const topFrameGeo = new THREE.BoxGeometry(doorOpeningWidth, topFrameHeight, wallThickness);
const topFrameMesh = new THREE.Mesh(topFrameGeo, wallMaterial);
topFrameMesh.position.set(
  houseOffsetX + 0,
  houseOffsetY + (wallHeight - topFrameHeight / 2),
  houseOffsetZ + 0
);
topFrameMesh.castShadow = true;
topFrameMesh.receiveShadow = true;
group.add(topFrameMesh);

const topFrameBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + 0,
    houseOffsetY + (wallHeight - topFrameHeight / 2),
    houseOffsetZ + 0
  )
});
topFrameBody.addShape(new CANNON.Box(new CANNON.Vec3(doorOpeningWidth / 2, topFrameHeight / 2, wallThickness / 2)));
world.addBody(topFrameBody);

// === 后墙（有窗户 - 使用 Shape + ExtrudeGeometry）===
const windowWidth = 1.5;
const windowHeight = 1.2;
const windowY = 1.6;

// 创建后墙的形状（外轮廓）
const backWallShape = new THREE.Shape();
backWallShape.moveTo(-roomWidth / 2, 0);
backWallShape.lineTo(roomWidth / 2, 0);
backWallShape.lineTo(roomWidth / 2, wallHeight);
backWallShape.lineTo(-roomWidth / 2, wallHeight);
backWallShape.lineTo(-roomWidth / 2, 0);

// 创建窗户孔洞（内轮廓）
const windowHole = new THREE.Path();
const windowLeft = -windowWidth / 2;
const windowRight = windowWidth / 2;
const windowBottom = windowY - windowHeight / 2;
const windowTop = windowY + windowHeight / 2;

windowHole.moveTo(windowLeft, windowBottom);
windowHole.lineTo(windowRight, windowBottom);
windowHole.lineTo(windowRight, windowTop);
windowHole.lineTo(windowLeft, windowTop);
windowHole.lineTo(windowLeft, windowBottom);

// 将孔洞添加到形状
backWallShape.holes.push(windowHole);

// 使用 ExtrudeGeometry 创建带孔的墙
const extrudeSettings = {
  depth: wallThickness,
  bevelEnabled: false
};

const backWallGeo = new THREE.ExtrudeGeometry(backWallShape, extrudeSettings);
const backWallMesh = new THREE.Mesh(backWallGeo, wallMaterial);

// 旋转和定位墙体
backWallMesh.rotation.y = Math.PI;
backWallMesh.position.set(
  houseOffsetX + 0,
  houseOffsetY + 0,
  houseOffsetZ + (-roomDepth + wallThickness)
);
backWallMesh.castShadow = true;
backWallMesh.receiveShadow = true;
group.add(backWallMesh);

// 物理刚体
const backLeftWidth = (roomWidth - windowWidth) / 2;

// 后墙左侧刚体
const backLeftBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + (-roomWidth / 2 + backLeftWidth / 2),
    houseOffsetY + wallHeight / 2,
    houseOffsetZ + (-roomDepth)
  )
});
backLeftBody.addShape(new CANNON.Box(new CANNON.Vec3(backLeftWidth / 2, wallHeight / 2, wallThickness / 2)));
world.addBody(backLeftBody);

// 后墙右侧刚体
const backRightBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + (roomWidth / 2 - backLeftWidth / 2),
    houseOffsetY + wallHeight / 2,
    houseOffsetZ + (-roomDepth)
  )
});
backRightBody.addShape(new CANNON.Box(new CANNON.Vec3(backLeftWidth / 2, wallHeight / 2, wallThickness / 2)));
world.addBody(backRightBody);

// 窗户下方刚体
const windowBottomHeight = windowY - windowHeight / 2;
const windowBottomBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + 0,
    houseOffsetY + windowBottomHeight / 2,
    houseOffsetZ + (-roomDepth)
  )
});
windowBottomBody.addShape(new CANNON.Box(new CANNON.Vec3(windowWidth / 2, windowBottomHeight / 2, wallThickness / 2)));
world.addBody(windowBottomBody);

// 窗户上方刚体
const windowTopHeight = wallHeight - (windowY + windowHeight / 2);
const windowTopBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + 0,
    houseOffsetY + (wallHeight - windowTopHeight / 2),
    houseOffsetZ + (-roomDepth)
  )
});
windowTopBody.addShape(new CANNON.Box(new CANNON.Vec3(windowWidth / 2, windowTopHeight / 2, wallThickness / 2)));
world.addBody(windowTopBody);

// === 左侧墙 ===
const sideWallGeo = new THREE.BoxGeometry(wallThickness, wallHeight, roomDepth);
const leftSideWallMesh = new THREE.Mesh(sideWallGeo, wallMaterial);
leftSideWallMesh.position.set(
  houseOffsetX + (-roomWidth / 2),
  houseOffsetY + wallHeight / 2,
  houseOffsetZ + (-roomDepth / 2)
);
leftSideWallMesh.castShadow = true;
leftSideWallMesh.receiveShadow = true;
group.add(leftSideWallMesh);

const leftSideWallBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + (-roomWidth / 2),
    houseOffsetY + wallHeight / 2,
    houseOffsetZ + (-roomDepth / 2)
  )
});
leftSideWallBody.addShape(new CANNON.Box(new CANNON.Vec3(wallThickness / 2, wallHeight / 2, roomDepth / 2)));
world.addBody(leftSideWallBody);

// === 右侧墙 ===
const rightSideWallMesh = new THREE.Mesh(sideWallGeo, wallMaterial);
rightSideWallMesh.position.set(
  houseOffsetX + (roomWidth / 2),
  houseOffsetY + wallHeight / 2,
  houseOffsetZ + (-roomDepth / 2)
);
rightSideWallMesh.castShadow = true;
rightSideWallMesh.receiveShadow = true;
group.add(rightSideWallMesh);

const rightSideWallBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + (roomWidth / 2),
    houseOffsetY + wallHeight / 2,
    houseOffsetZ + (-roomDepth / 2)
  )
});
rightSideWallBody.addShape(new CANNON.Box(new CANNON.Vec3(wallThickness / 2, wallHeight / 2, roomDepth / 2)));
world.addBody(rightSideWallBody);

// === 屋顶 ===
const roofGeo = new THREE.BoxGeometry(roomWidth, 0.15, roomDepth);
const roofMat = new THREE.MeshPhongMaterial({ color: 0x8b7355 });
const roofMesh = new THREE.Mesh(roofGeo, roofMat);
roofMesh.position.set(
  houseOffsetX + 0,
  houseOffsetY + wallHeight,
  houseOffsetZ + (-roomDepth / 2)
);
roofMesh.receiveShadow = true;
roofMesh.castShadow = true;
group.add(roofMesh);

const roofBody = new CANNON.Body({
  mass: 0,
  position: new CANNON.Vec3(
    houseOffsetX + 0,
    houseOffsetY + wallHeight,
    houseOffsetZ + (-roomDepth / 2)
  )
});
roofBody.addShape(new CANNON.Box(new CANNON.Vec3(roomWidth / 2, 0.075, roomDepth / 2)));
world.addBody(roofBody);

export default group;

看下效果：

这样，屋内就有窗户了。

这可不是只有视觉上的，也有对应的物理效果。

案例代码上传了小册仓库

总结

这节我们给房屋加上了物理刚体，这样它就有物理效果了，比如不能穿墙，只能走门。

然后又加上了窗户，cannon 没有带孔的形状，所以得一个个 Box 来拼接。

下节继续给房屋内加上更多东西。
